Specification

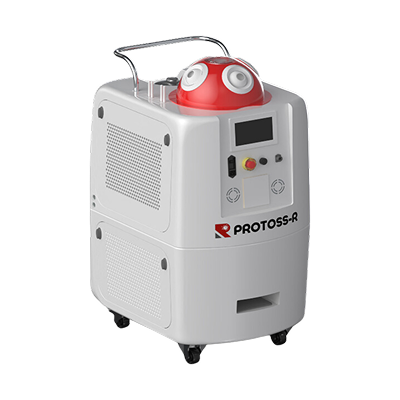

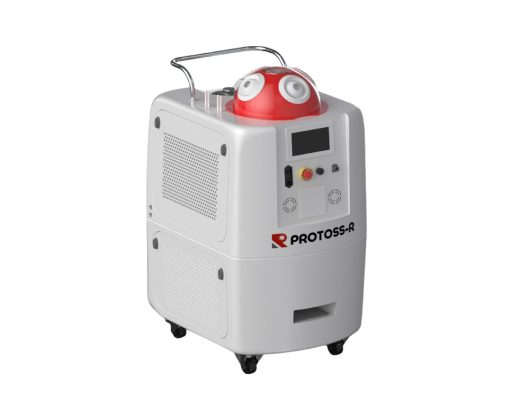

Model Name PROTOSS-R
Exterior Material SUS304, Al, FRP
Recommended Temperature Operating: 15–30℃ / Storage: 15–35℃
Recommended Humidity Operating: 20–85% / Storage: up to 60%
Power Requirement / Consumption AC 220 Volts 50/60Hz, 10Amps
Operation Type Mobile Type
Dimensions 650 x 800 x 1,300
Weight 80 kg
Hydrogen Peroxide Capacity 5L
Hydrogen Peroxide Concentration 30–35%
Control System Windows Embedded Standard 10
Data Transmission Ethernet & WiFi
Monitor 10-inch Touch Monitor
Hydrogen Peroxide Measurement Range 0–1,000 ppm
Outlet Gas Temperature 50℃ or higher
Catalyst Carbon
HEPA Filter H14
Hydrogen Peroxide Injection Rate 10, 12, 15 g/min
Sterilization Capacity 500㎥
Data Storage USB & HDD & Thermal Printer
Wheels Urethane (with locking function)
Remote Controller Wireless remote (included), Wired remote (optional)

Key features

  • Icon 1

    Fast sterilization with a maximum injection rate of 15 g/min
    : High-capacity injection vaporization system (6–15 g/min)

  • Icon 2

    Equipped with a touch screen monitor and wireless tablet as standard
    + (Optional) Wired remote control available (for large areas)

  • Icon 3

    H₂O₂ high-level sensor: 0–1,000 ppm

  • Icon 4

    High-quality sensors for enhanced durability
    : RH & TEMP sensors (Rotronic)

  • Icon 5

    Green, red, and blue LED indicators to display operating status

  • Icon 6

    Alarm: Audible buzzer activated in case of alert

  • Icon 7

    Audit Trail & 21 CFR Part 11 compliance
    : Supports Computer System Validation (CSV) in accordance with DI and GAMP 5 standards

  • Icon 8

    USB data port: Stores sterilization process results
    Data storage and output: USB & HDD & thermal printer

  • Icon 9

    Cost-efficient consumables: Compatible with all reagent-grade hydrogen peroxide solutions

  • Icon 10

    Easy maintenance and cost savings: Only defective parts need replacement

  • Icon 11

    Mobile (aeration-type) system designed for use within sterilization spaces

  • Icon 12

    Validated for 6-log reduction (GMP / GLP / BSL-3 & 4)
    : Sterilization verified using USP-guided biological indicators
    (Geobacillus stearothermophilus)

  • Icon 13

    Competitive pricing and cost-effective consumables
    : Offers user flexibility with refillable consumables and economical operation for large-capacity mobile systems

  • Icon 14

    Mobile design advantage
    : Flexible application across various GMP environments

  • Mobile System (Portable, Air Diffusion Type)

    This system operates by moving the PROTOSS-R and diffusion fan into the sterilization area and positioning them at an optimal location to effectively eliminate microorganisms within the enclosed space.

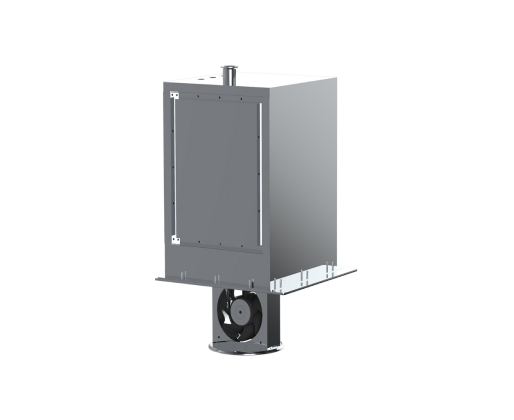

  • Semi-Automatic / Lift Fan System

    This semi-automatic system enables rapid sterilization through an integrated lift fan installed on the ceiling of the target space.
    As the fan is not brought into the area, the risk of external contamination is minimized, and the fixed position of the fan ensures consistent and reliable sterilization validation without user-induced variables.
